YASDA - YBM Vi40AT-MIL-YAS-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

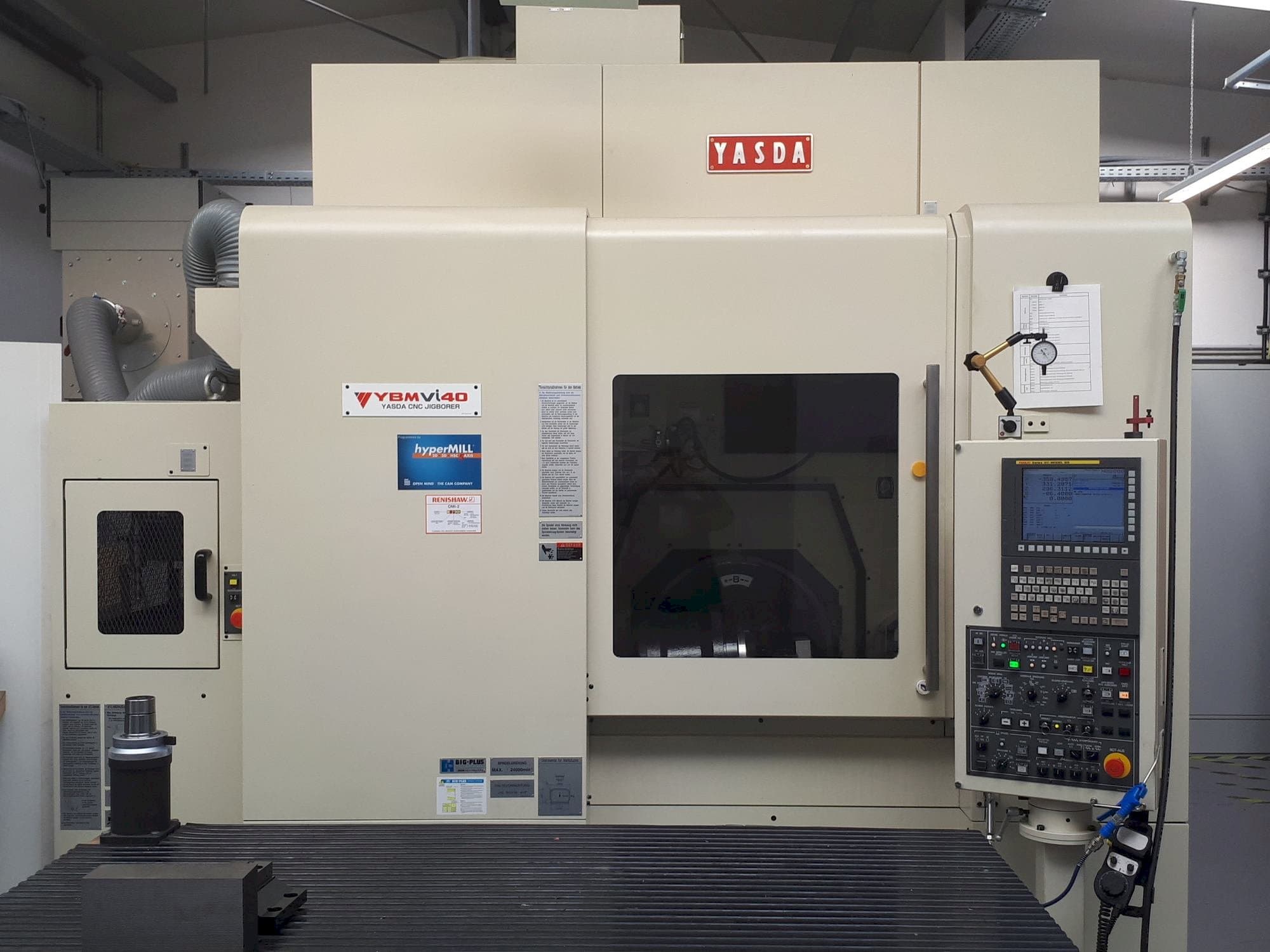

YASDA YBM Vi40 Vertical Machining Center

This YASDA YBM Vi40 Vertical Machining Center was made in the year 2014 in Japan. It has been working for only 379 hours. It is operated through a Fanuc Series 31i-MODEL B5 control unit. This machine can work with a spindle speed range up to 20000 rpm. It includes a Renishaw 3D workpiece measuring system, an internal cooling high pressure 30 bar, and 50 toolholders as additional equipment.

Overview

brand: YASDA
year: 2014
MODEL: YBM Vi40
production hours: 379
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - YASDA YBM Vi40

General Data

Measurements width: 3010 mm
Measurements depth: 3890 mm
Measurements height: 3515 mm
Machine weight: 15000 kg

Control Unit

Model: Series 31i-MODEL B5
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 450 mm
B-AXIS Movement: plus/minus 110° MM
C-AXIS Movement: 360° MM

Workpiece

Workpiece drm: 400 mm
Workpiece x: 400 mm
Workpiece y: 400 mm
Workpiece weight: 200 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 60
Max weight: 7 kg
Max tool diameter: 70 mm
Max tool length: 250 mm
Type of tool holder: BT40 Big Plus

Additional Information

Machine history

Material type: Steel

Machine Benefits

Technical Machine Benefits:
- - B/c axis till rotary table
- - Direct drive self-adjusting spindle preload
- - Probing systems
- - 5 sided machining with a single set-up
- - Hybrid box guide way with roller pack
- - Dd direct drive c axis motor
- - Worm gear driven b axis
Qualitative Machine Benefits:
- - As new
- - High precision
- - Very precise, fast, and stable machine
- - Optical scale feedback
- - Symmetrical bridge structure
- - Advanced thermal displacement
- - Rigid structure designed for hard milling die mild applications

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
