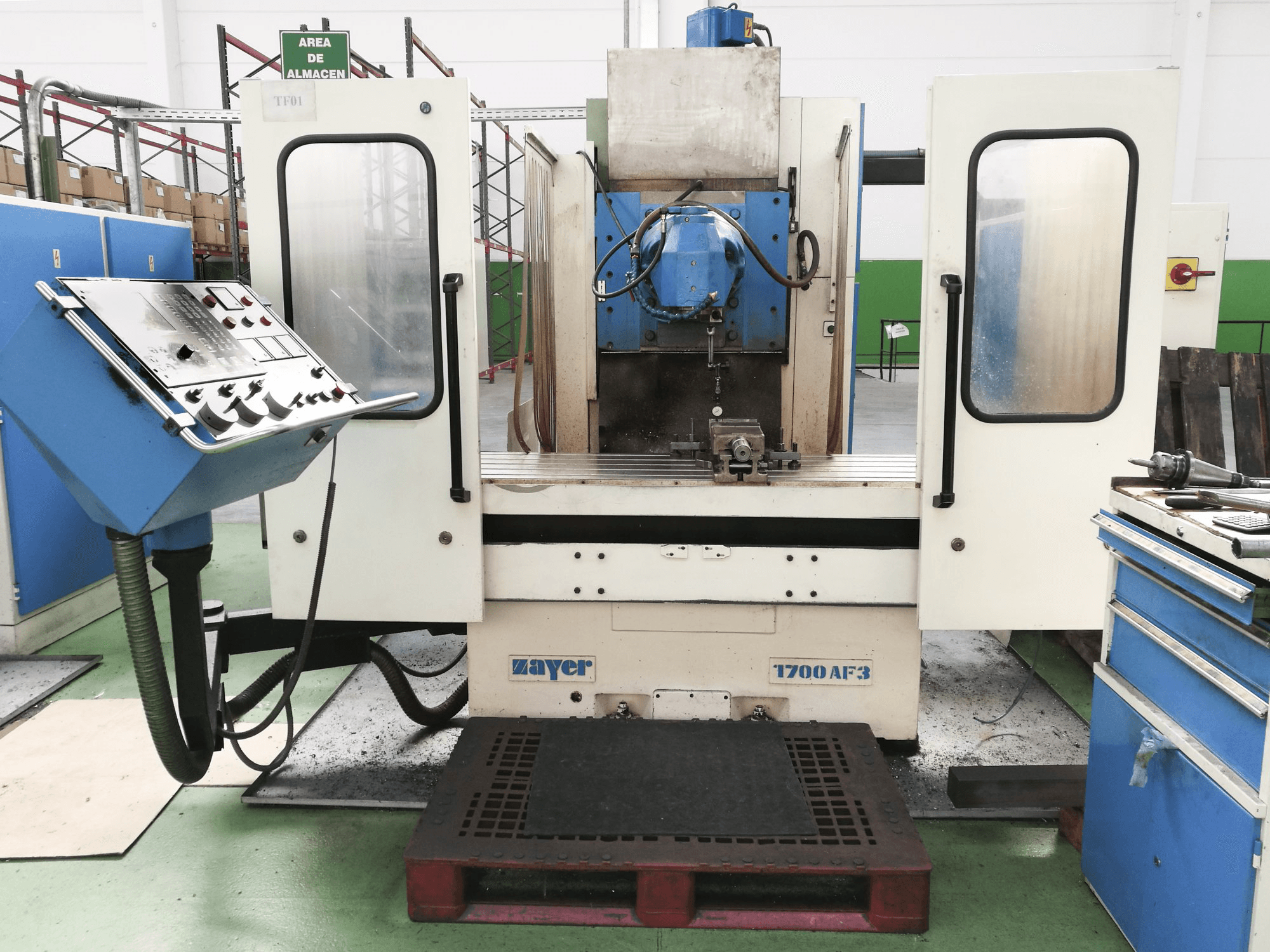

Zayer 1700 AF3 Vertical Milling Machine

This Zayer 1700 AF3 Vertical Milling Machine from 1989 has a production record of only 13757 hours. With a spacious table of 1700 x 510 millimeters (L x W), and a range of movements of 1320, 610 and 610 millimeters (X-Axis, Y-Axis and Z-Axis respectively), the equipment is operated through a Fagor 8020 Control unit.

Overview

brand: Zayer
year: 1989
MODEL: 1700 AF3
production hours: 13757
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold
control unit brand: FAGOR

Technical Information - Zayer 1700 AF3

General Data

Measurements width: 3840 mm
Measurements depth: 2773 mm
Measurements height: 3074 mm
Machine weight: 8500 kg

Control Unit

Model: 8020
Remote control: Yes
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 50-1800 1/min
Spindle motor power: 14.7 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 1320 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 1700 mm
Outer width: 510 mm
TSlots size: 18 mm
Number of tslots: 5
Distance between: 100 mm

Media

Main electronic connection: 380V / 50Hz
Power consumption: 45 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
