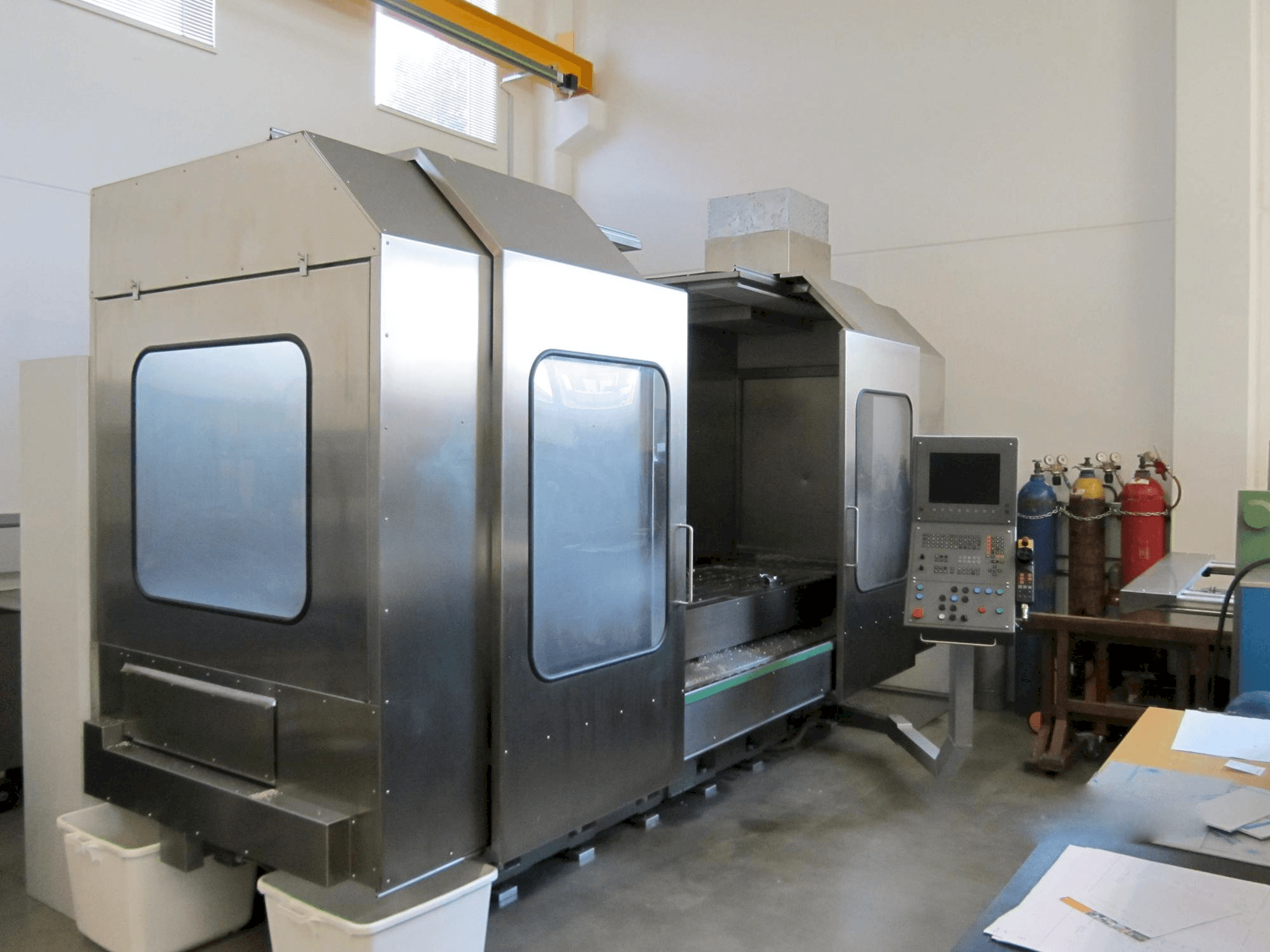

Zayer BF2200 Milling Machine

This Zayer BF2200 Milling Machine was built in 1991 and completely renovated in 2005. This machine has a working record of 7145 hours. It is operated through a HEIDENHAIN TNC426 control unit. This 3 axis machine can work with a spindle speed up to 6000 rpm and a table size 2200 x 800 mm. It includes manual books with electrical wiring diagrams.

Overview

brand: Zayer
year: 1991
MODEL: BF2200
production hours: 7145
application type: Milling
Location: Hungary
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Zayer BF2200

General Data

Measurements width: 4400 mm
Measurements depth: 2400 mm
Measurements height: 3000 mm
Machine weight: 15000 KG

Control Unit

Brand: HEIDENHAIN
Model: TNC426

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 15 KW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 1890 mm
Y-AXIS Movement: 1016 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 2200 mm
Outer width: 800 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 910 mm
Table load: 4000 kg

Media

Chip conveyor: Yes

Additional Equipment

- SK40 vertical head
- SK50 HURON head (can be rotated at an angle)
- Along with a couple of SK50 tool holders
- Minimal lubrication
- Measuring rods on all three axes
- Electric handwheel
- Slippers
- Brand new, acid-proof enclosure system with integrated LED lighting
- Backup winchester and data backup

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle cone: iso50
- - High speeds x / y / z = 35/35/30 m/min
- - Spiral chip conveyor
- - Machine manual, electrical wiring diagrams included
Qualitative Machine Benefits:
- - Completely renovated in 2005 (new drive system, new universal head, ball screws, acid-proof casing system and new controller)
- - It was only used for dry machining since their renovation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
