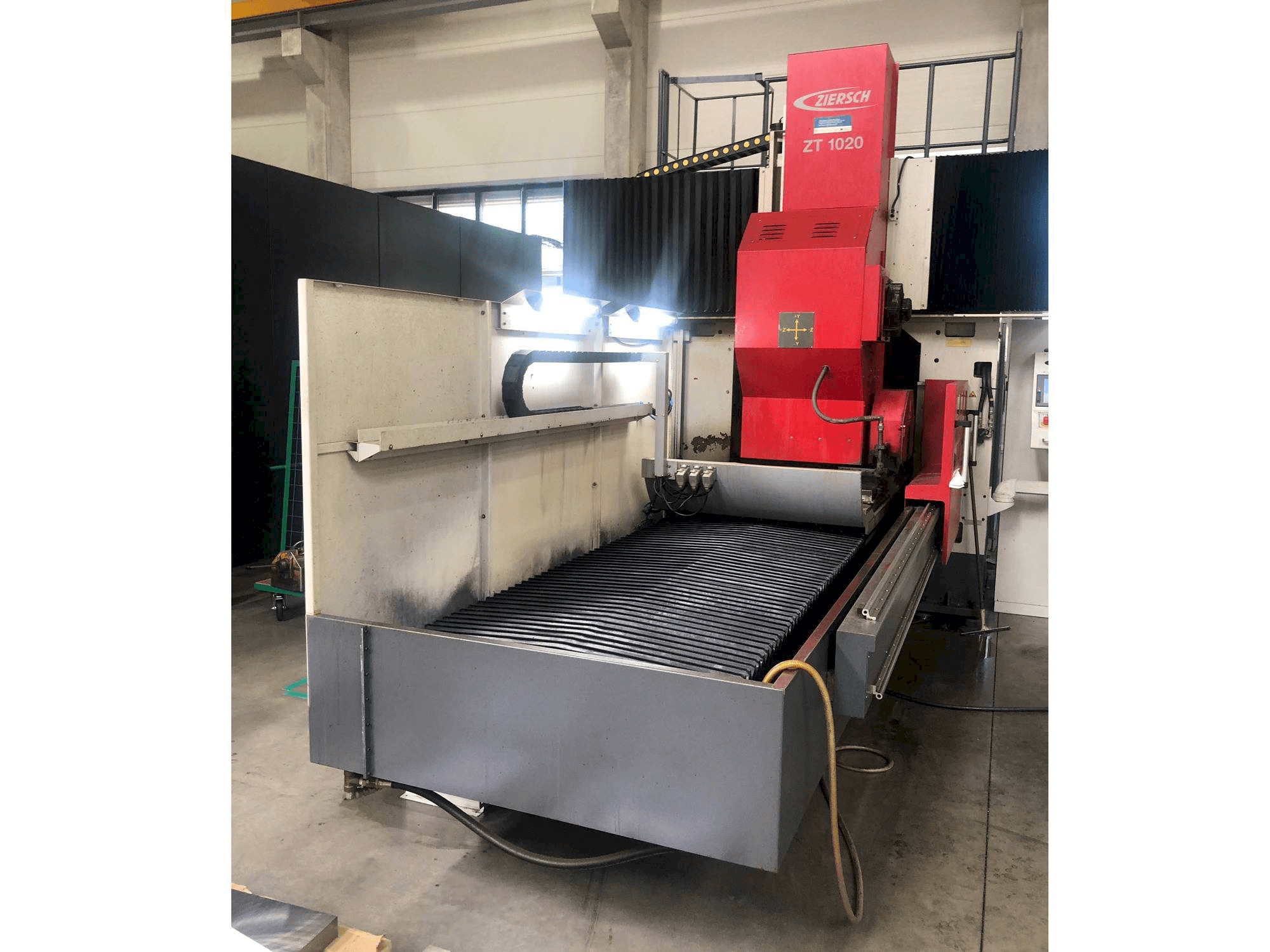

Ziersch ZT 1020 Grinding machine

This Ziersch ZT 1020 Grinding machine was manufactured in the year 2015 in Germany and has 7187 production hours. It is equipped with a Ziersch GOT1000 control unit. The machine has a control range grinding spindle motor of 3000 rpm, is in very good condition and has low hours.

Overview

brand: Ziersch
year: 2015
MODEL: ZT 1020
production hours: 7187
application type: Grinding
Location: Czech Republic
machine type: Surface Grinding Machine
availability: Sold

Technical Information - Ziersch ZT 1020

General Data

Measurements width: 8160 mm
Measurements depth: 4650 mm
Measurements height: 4500 mm
Machine weight: 22000 kg

Control Unit

Model: GOT1000

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 1100 mm

Table

Outer length: 2050 mm
Outer width: 1000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Grinding range 2. 000 x 1. 200 mm
- - Size of magnetic chuck 2. 000 x 1. 000 mm
- - Table load incl. Magnetic chuck 4. 000 kg
- - Grinding spindle drive 22 kw
- - Control range grinding spindle motor 3. 000 rpm
- - "distance between columns incl. Enclosure 1. 250 mm"
Qualitative Machine Benefits:
- - Very good condition, low hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
