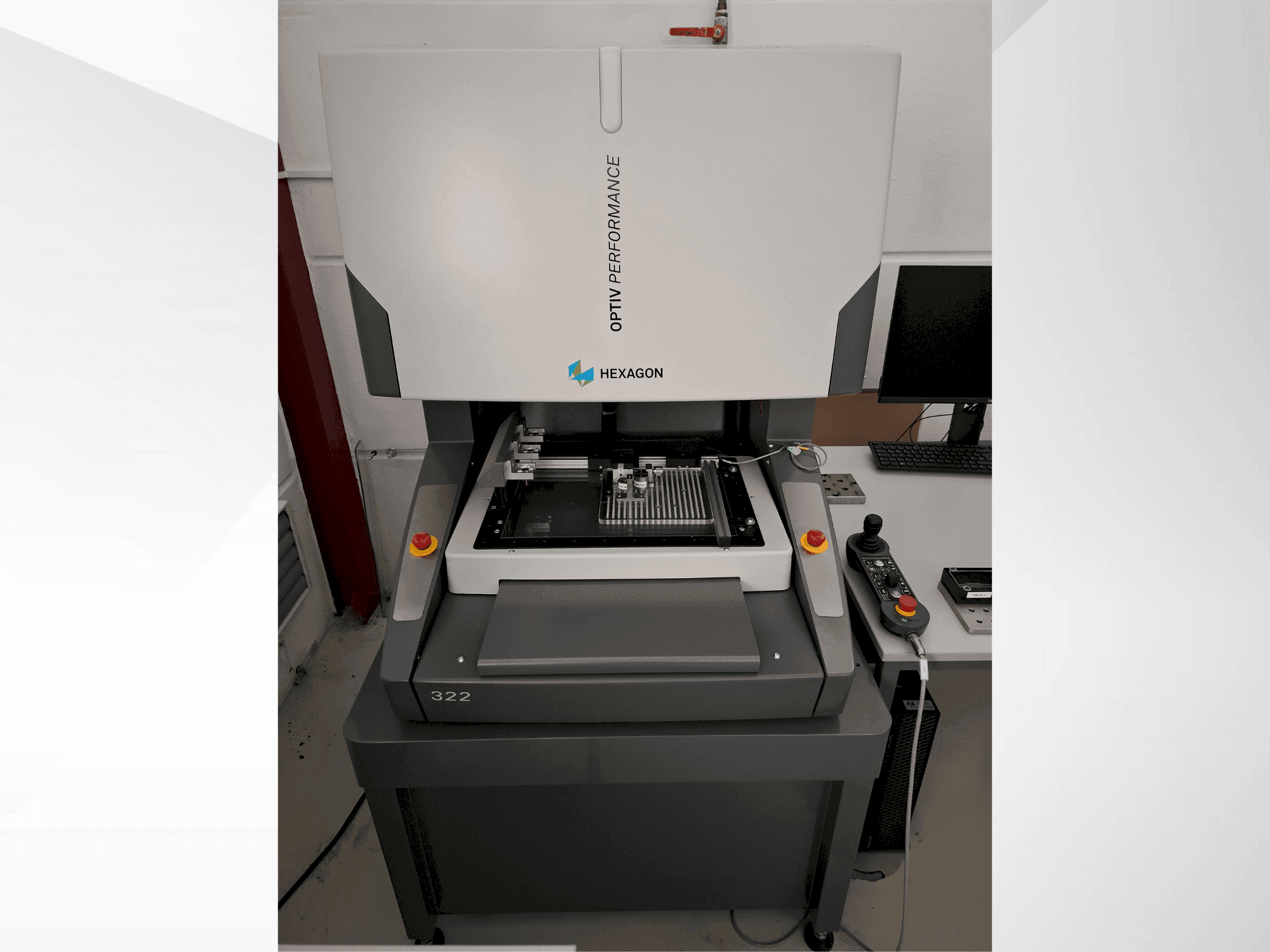

Hexagon - Optiv Performance 322DE-MEA-HEX-2019-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Vision: 300 mm (x), 200 mm (y), 200 mm (z)
  • - Probe: 300 mm (x), 200 mm (y), 200 mm (z)
  • - Cws: 260 mm (x), 200 mm (y), 20 0mm (z)
  • - Vision/probe: 240 mm (x), 200 mm (y)
  • - All sensors: 158 mm (x), 200 mm (y), 200 mm (z)
  • - Max traverse speed: 300 mm/s (per axis), 500 mm/s (vector)
  • - Uncertainty: iso 10360-7 (optical): ex, ey = (1. 5 + l/250) µm, exy = (1. 9 + l/250) µm, ez = (1. 9 + l/250) µm iso 10360-2 (hp-s-x1c): mpes = (1. 9 + l/250) µm, mpep = 1. 9 µm, mperhp = 2. 9 µm (t = 75 sec)
  • - Scale resolution: 5 nm
  • - Max load capacity on glass plate: 20 kg
  • - Voltage: 115–230 v ± 10%
• Qualitative Machine Benefits:
  • - Frequency: 50/60 hz ± 5%
  • - Power consumption: 600 va
  • - Noise emission: a-weighted sound pressure level < 70 db(a)

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
